SD4923E
POE POWERED DEVICE (PD) CONTROLLER COMPATIBLE WITH IEEE 802.3AF/AT STANDARD

    SD4923E is an Ethernet powered device controller IC compatible with IEEE 802.3af/at standard. It provides powered devices (PD) with functions of detection, classification and inrush current limit.

    SD4923E integrates a 100V power MOSFET with on-resistance of 0.6Ω, providing maximum 850mA operating current.

    SD4923E features built-in undervoltage protection and over temperature protection, providing high-level power good signal.


Main feature

  • IEEE 802.3af/at Compliant

  • 100V 0.6Ω On-chip MOSFET

  • 180mA inrush current limit

  • 850mA operating current

  • Power good signal indication

  • Fault automatic retry

  • Undervoltage protection

  • Over temperature protection

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

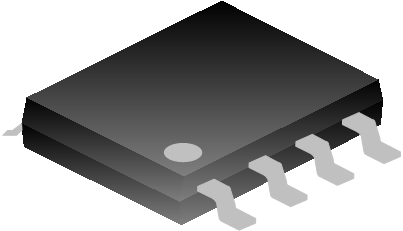

SD4923E ESOP-8-225-1.27 SD4923E Halogen free Tube
SD4923ETR ESOP-8-225-1.27 SD4923E Halogen free Tape & Reel
Documents
title Types of Size (KB) date Download the latest English version
SD4923E PDF 273 2023-12-22 SD4923E簡(jiǎn)要版說明書
