SAP293
DUAL COMPARATORS

The SAP293 consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Main feature

  • Wide Single?Supply Range: 2V~36V

  • Faster response time of 1 μsec

  • Common-mode input voltage range includes ground

  • Differential input voltage range equal to maximum rated

  • supply voltage: ±36V

  • Low output saturation voltage

  • ESD rating (HBM): 2KV


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SAP293SA SOP-8-225-1.27 SAP293SA Halogen free Tube
SAP293SATR SOP-8-225-1.27 SAP293SA Halogen free Tape&Reel

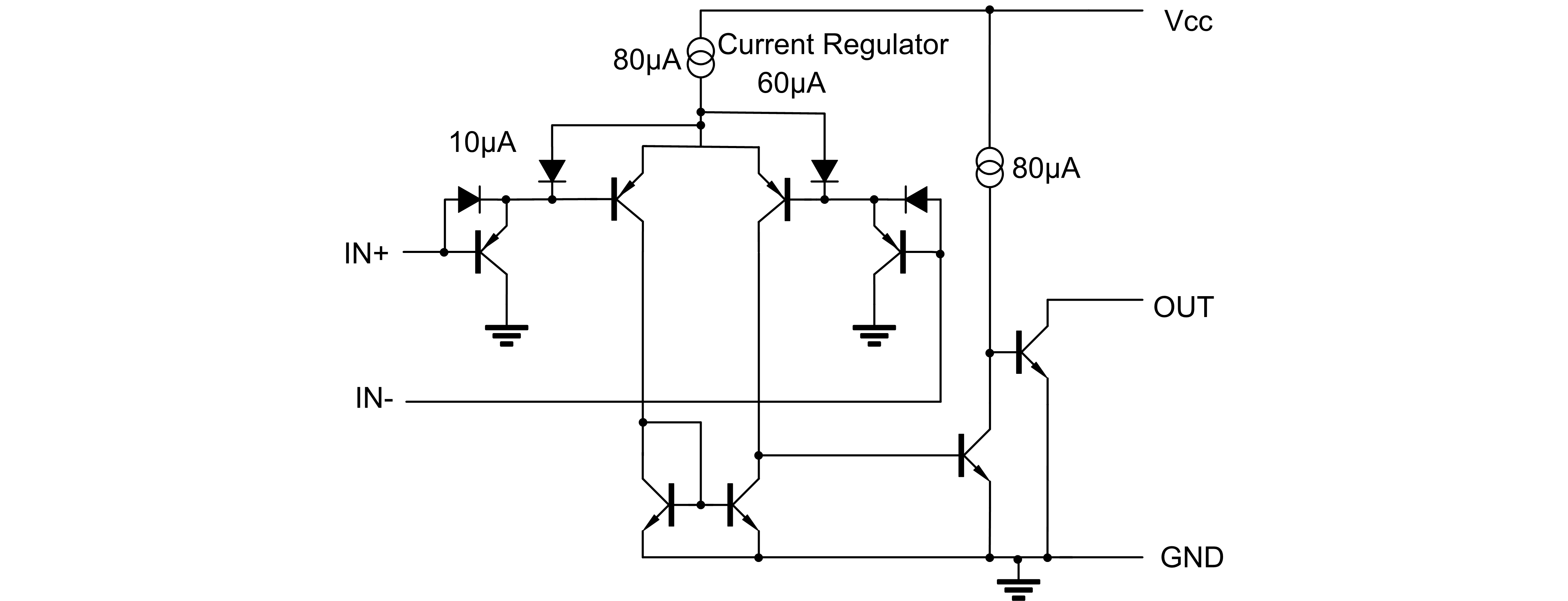

Block Diagram

SAP293 英文.png

Documents
title Types of Size (KB) date Download the latest English version
SA293 0 1970-01-01 SA293 Datasheet
