SDM03B60DAS
600V/3A THREE-PHASE FULL-BRIDGE DRIVER WITH LOGIC CONTROL (INTELLIGENT POWER MODULE)

    SDM03B60DAS is a three-phase brushless DC motor driver with the 180° sinusoidal commutation controller chip and the high voltage gate driver chip. It provides optimum motor drive system and downsizing the built-in PCB of the motor.

    SDM03B60DAS integrates functions such as UVLO (under-voltage protection), OCP (over-current protection), TSD(thermal shutdown) and CL(current limiting), provides perfect protection and fail-safe operation.

Main feature

  • Built-in 600V/3A fast recovery power MOSFETs

  • Output current:3A

  • Built-in bootstrap diodes with limit resistors

  • Built-in high-voltage gate driver (HVIC)

  • Built-in under voltage protection(UVLO)

  • Built-in thermal shutdown(TSD)

  • Built-in current limiter(CL)

  • Built-in over current protection (OCP)

  • Built-in ASIC signal controller

  • Insulation level: 1500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM03B60DASTR SOP-37H SDM03B60DAS Halogen free Tape&Reel
Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SDM03B60DAS PDF 287 2023-06-09 SDM03B60DAS 簡要版說明書

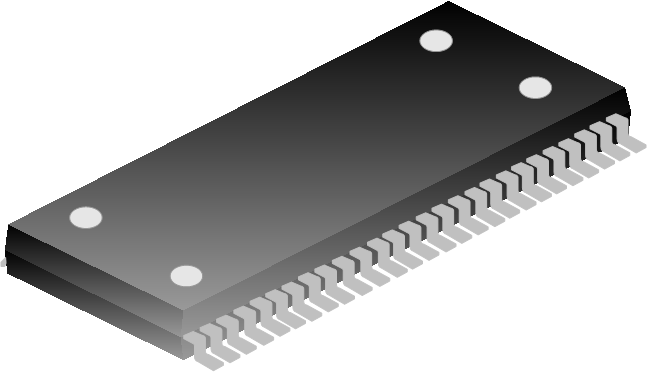

Packages
